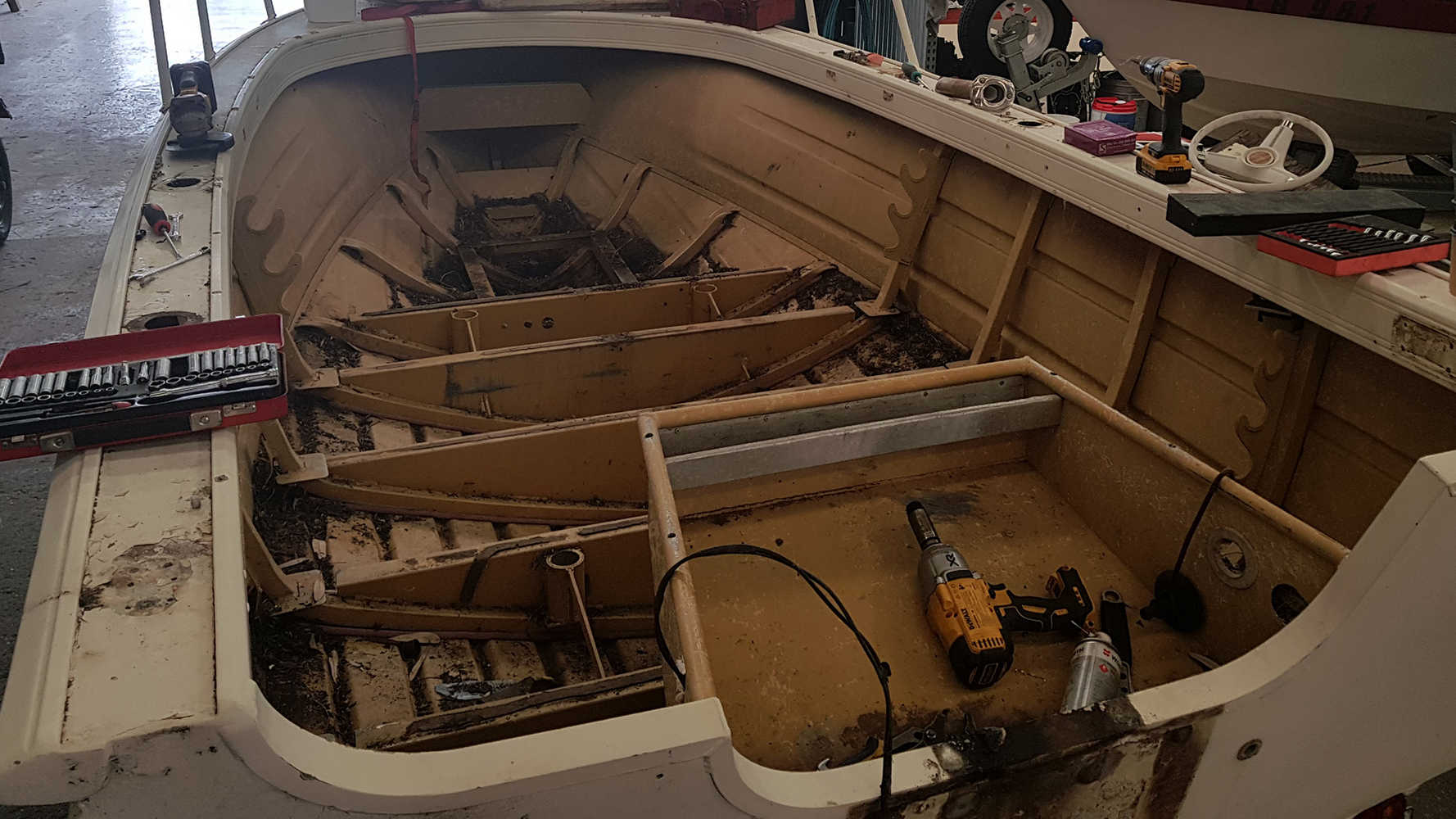

Quintrex hull stripped

Quintrex Hull

Preliminary inspection of the hull, led to a thorough assessment and works including...

  • Complete strip down of hull and clean
  • Assess hull and alloy condition, for electrolysis and structural issues
  • Minor repair, NO electrolysis

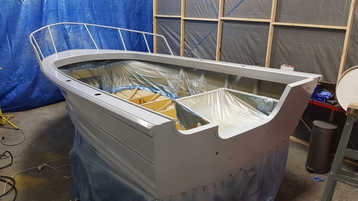

  • Sandblast hull
  • Paint hull with full marine paint system, primer and topcoats
  • Fit side rod holders for trolling
  • Custom decal set

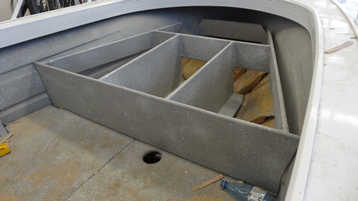

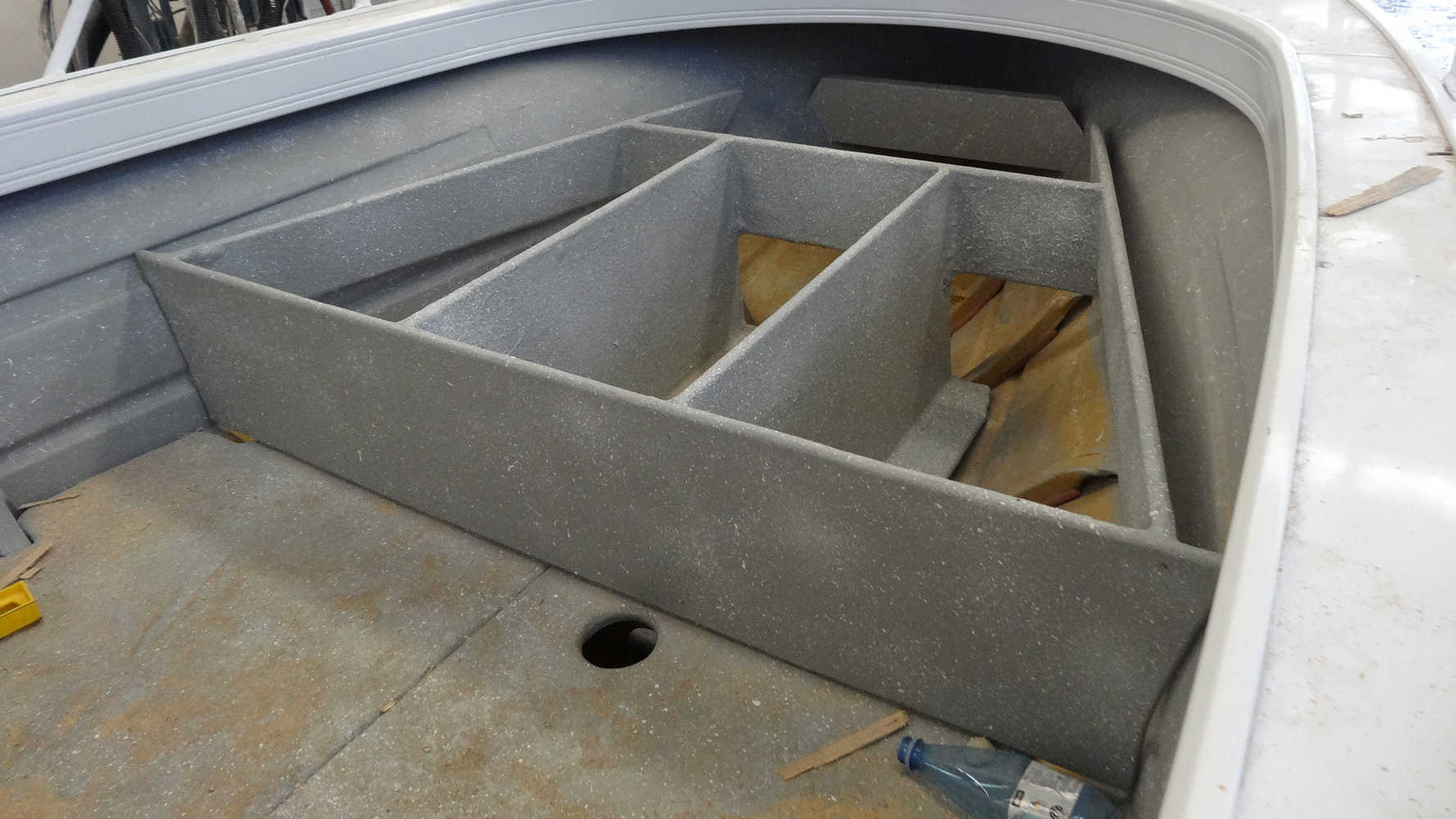

Quintrex flooring


Underfloor was liquid foam filled for floatation and to reduce noise.

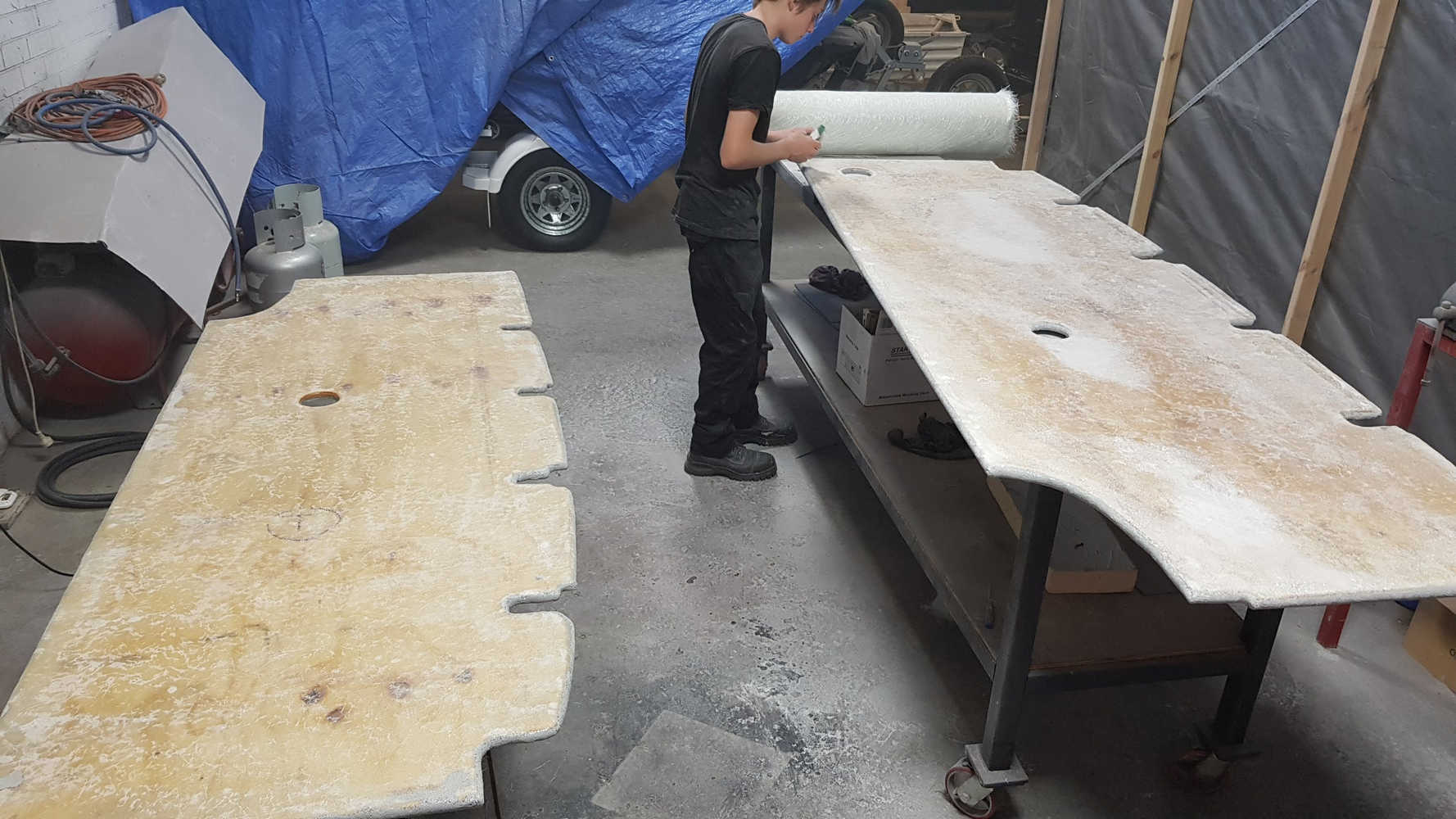

Marine ply flooring and casting deck was fabricated with...

  • complete fiberglass 900gsm laminate wrap
  • flow coat with speckle finish
  • optional seat mounts
  • under deck storage for safety equipment and gear bag

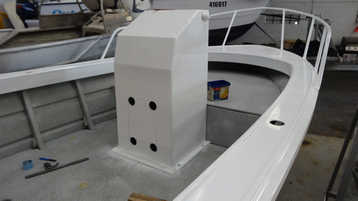

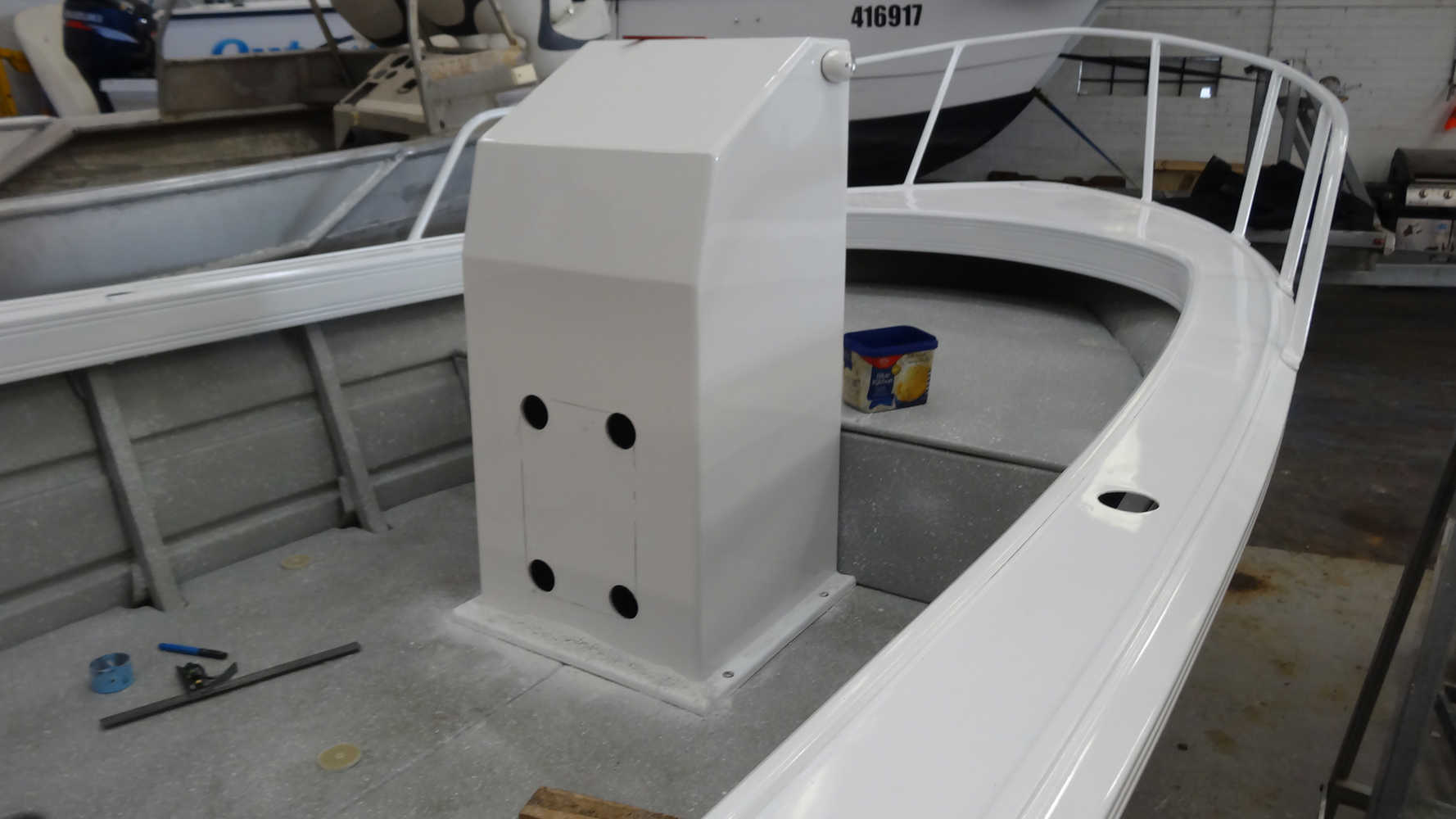

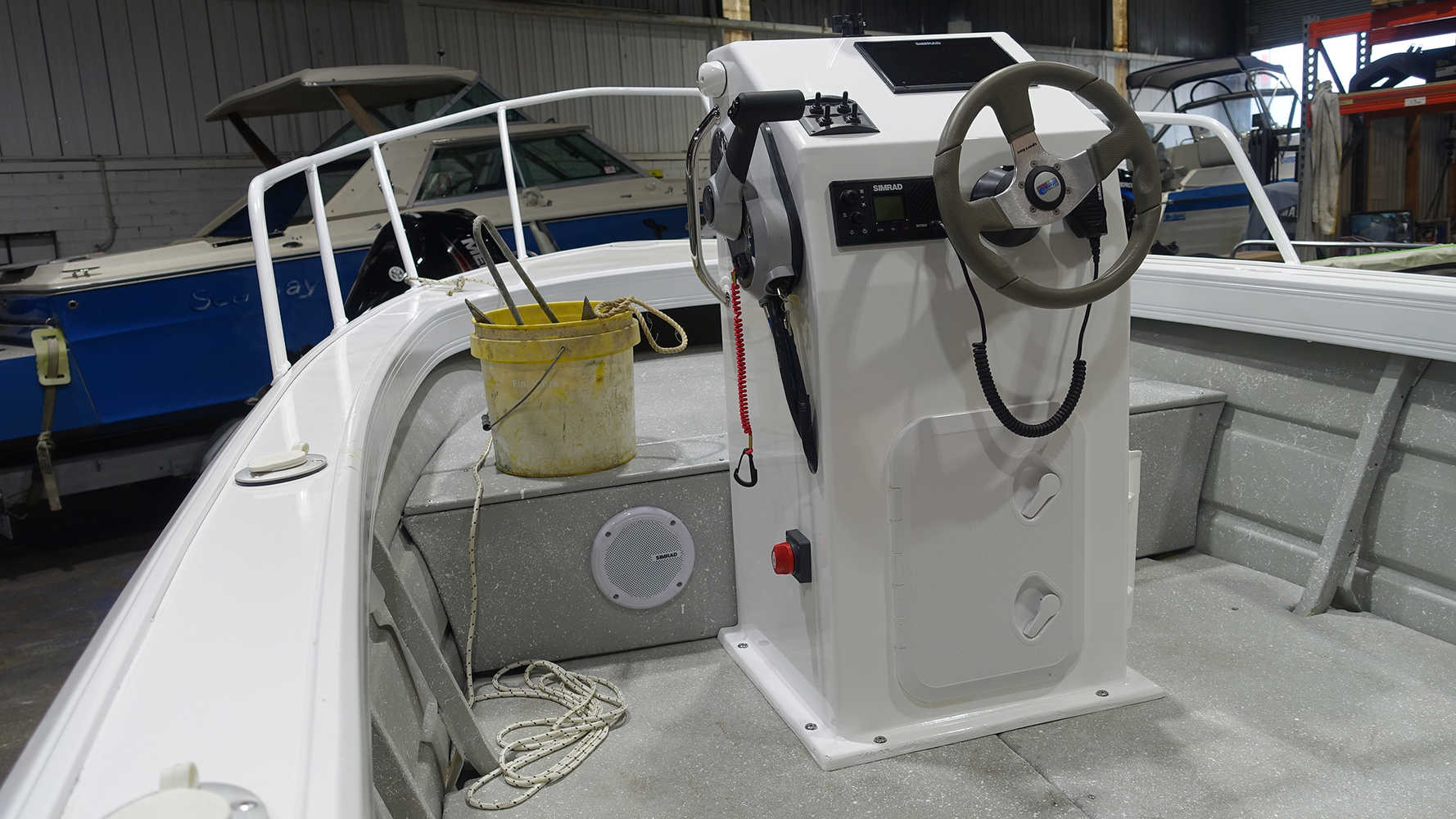

Custom fibreglass centre console

Fibreglass Centre Console

We designed and fabricated a fibreglass centre console for...

  • hydraulic steering, engine controls, marine electronics
  • stainless steel grab rail and cup holders
  • three drawer fishing tackle box
  • access door
  • phone mount

Engine / Products

Only the best engine and world-class marine products for this project boat.

Mercury 60 HP four-stroke outboard engine


Mercury 60 HP four-stroke outboard engine selected for... Start with no‑worry reliability. More low‑end torque for excellent acceleration. Increased fuel economy and outstanding overall performance. A robust electrical system with a high‑output alternator to keep batteries charged and fishing electronics humming.

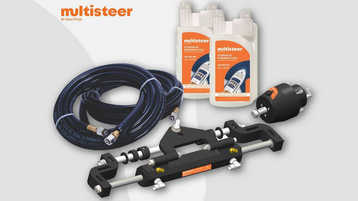

Multiflex multisteer hydraulic steering


Multiflex multisteer hydraulic steering system fitted for responsive steering with a smooth action and reliability.

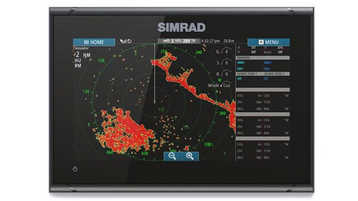

Simrad GO9 MFD

Simrad marine & boating electronics

See details below...

Shop Lone Star Marine drum anchor winches at Evolution Marine

Lone Star Marine

Lone Star Marine GX drum anchor winch, bowsprit, hawse pipe and MMX anchor provides a world‑class anchoring system.

Shop Johnson Pumps at Evolution Marine

SPX FLOW Johnson Pump

Reliability on board with a Johnson Pump bilge pump.

Shop electrical at Evolution Marine

Electrical Fit-out

Electrical fit-out includes...

  • Large dual purpose battery with isolator switch
  • LED lighting for navigation, anchor and gunwale lighting
  • SPX Johnson Pump bilge pump
  • Cabling for marine electronics and accessories
  • Marine grade cabling
Quintrex and Simrad marine and boating electronics

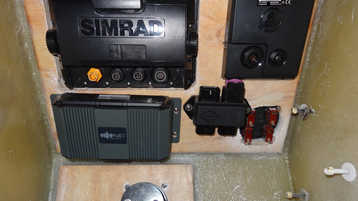

Simrad marine electronics

Simrad GO 9 multi-function display (MFD) with active imaging transducer for...

  • engine data and instrumentation
  • GPS, Sonar, echo scan, down scan, side scan
  • Audio AM/FM, Bluetooth, USB, supports Android and Apple phones

Simrad RS20 VHF 2-way radio

Simrad SonicHub2 audio hub

Simrad marine loudspeakers

Quintrex fish raider


Items manufactured to suit the boat...

  • Stainless steel fuel tank
  • Stainless steel boarding ladder
  • Stainless steel snapper racks, travel rod holders and bait board
  • Custom made spray curtains
  • Seat cushions for casting deck

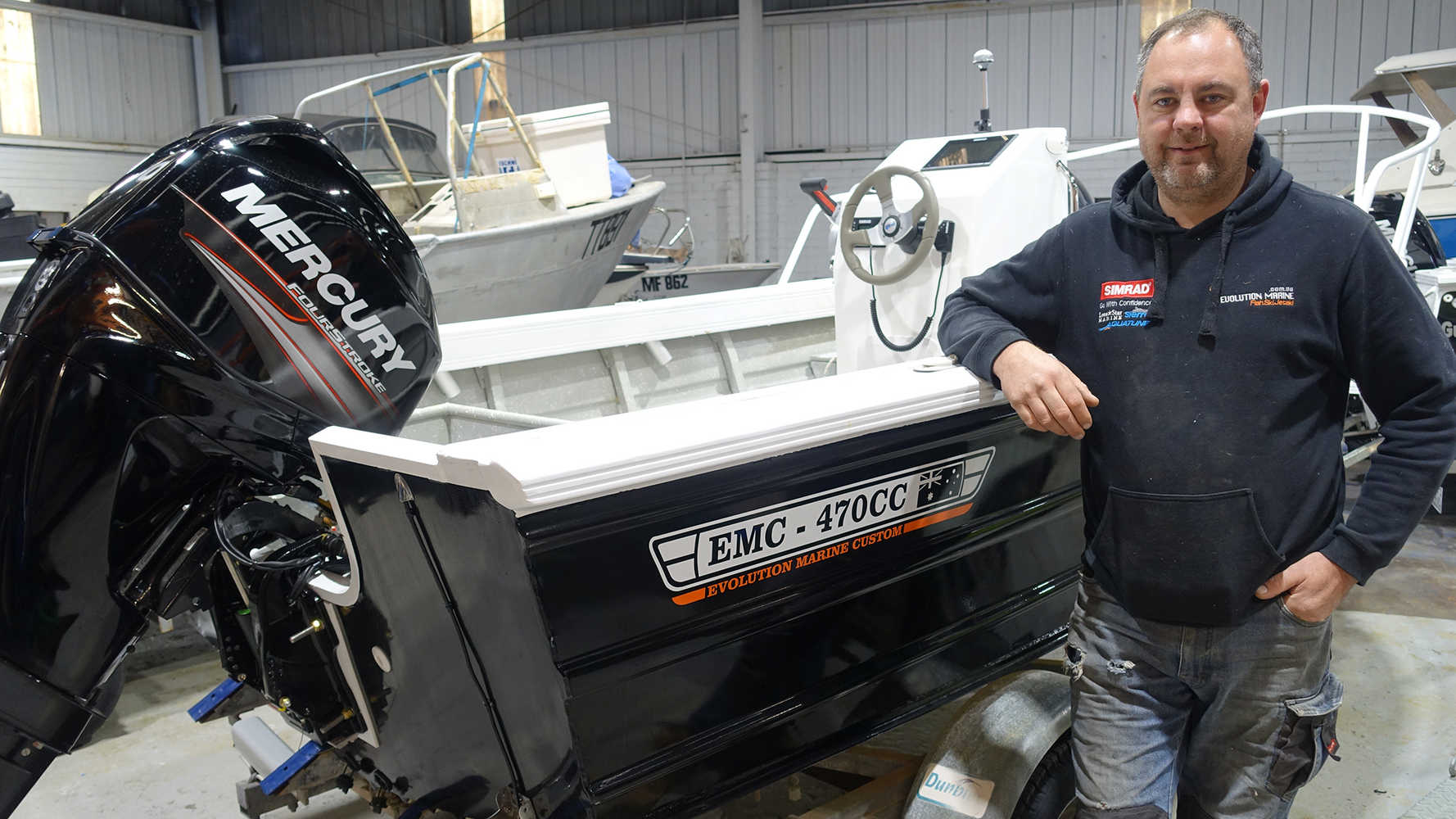

Project Summary

A modern centre console fishing boat, economical, reliable and performance. Bring on the fishing season. Another happy customer. Find the right fit for your needs.
